Two Restorations,
One Block
DualCraft:
With DualCraft & SecondCut
Zero Waste Milling
Maximum Saving
Low Maintenance
Effortless Operation
Smart Interface,
FEATURE
DualCraft*
Two Restorations,
One Block
- DualCraft* allows you to mill two restorations from a single block, cutting material, time, and cost in half with the Lilivis MILL.
- Boost productivity—double the output in the same amount of time—for higher profitability.
- Powered by a dual-spindle, 50,000 rpm high-speed system and delivering ±25 µm repeatability for stable, high-volume production.
Patent Application No. 10-2025-0034207
Zero Waste Milling
with DualCraft & SecondCut*
- SecondCut* lets you mill one restoration from half a block, then mill another from the remaining half, ensuring every block is used to its fullest.
- Reduce material waste and support a more sustainable, eco-friendly dental practice.
DualCraft&SecondCut enables two restorations from one block. Users must follow each block manufacturer’s guidelines, and responsibility for any issues lies with the user.
Low Maintenance, Maximum Savings

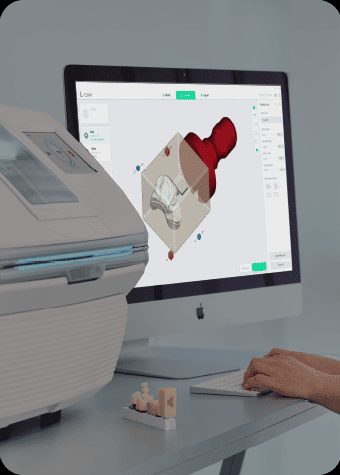

- Free L-CAM software with zero annual subscription fees
- Air Sealing & compressor-free design reduces installation and maintenance costs
- No lubricant or oil required during milling—uses standard de-calcified water for minimal environmental impact

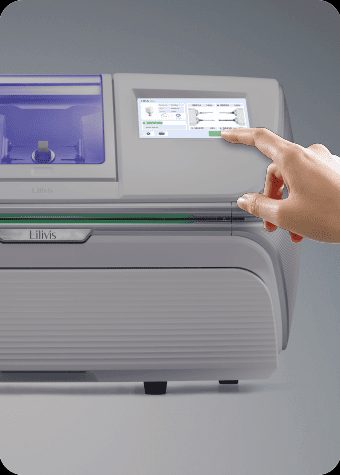

Smart Interface, Effortless Operation
- 7-inch touchscreen with intuitive UI
- Pre-Touch one-touch calibration
- 4-Bur automatic tool change for instant, training-free operation
TECHNICAL DATA
Model
LM-100
Size & Weight
743(W) x 464(D) x 455(H) mm 61kg
Milling Type
Wet Processing, Milling & Grinding Method Support
(Depends on the Material)
Axis
Dual 3 Axis
Spindle
4 Motors Dual Spindles 50,000 rpm
Processing Time
8~15 min (@Grinding)
Repeatability
±25 um
Material
Lithium Disilicate Glass Hybrid Ceramic Zirconia PMMA
Application
Crown Inlay Onlay
Veneer Bridge
Veneer Bridge
Material Thickness
Up to 40 mm
Utility
7" LCD Touch Screen
Built in Water Tank
Built in Water Tank
Power Supply
100-120V AC 3A
200-240V AC 1.5A, 50/60Hz
200-240V AC 1.5A, 50/60Hz
* Specifications and designs are subject to change without notice.
