FEATURE
One kit can handle various cases based on
residual bone volume and bone quality.
residual bone volume and bone quality.
Beginning of Digital Dentistry

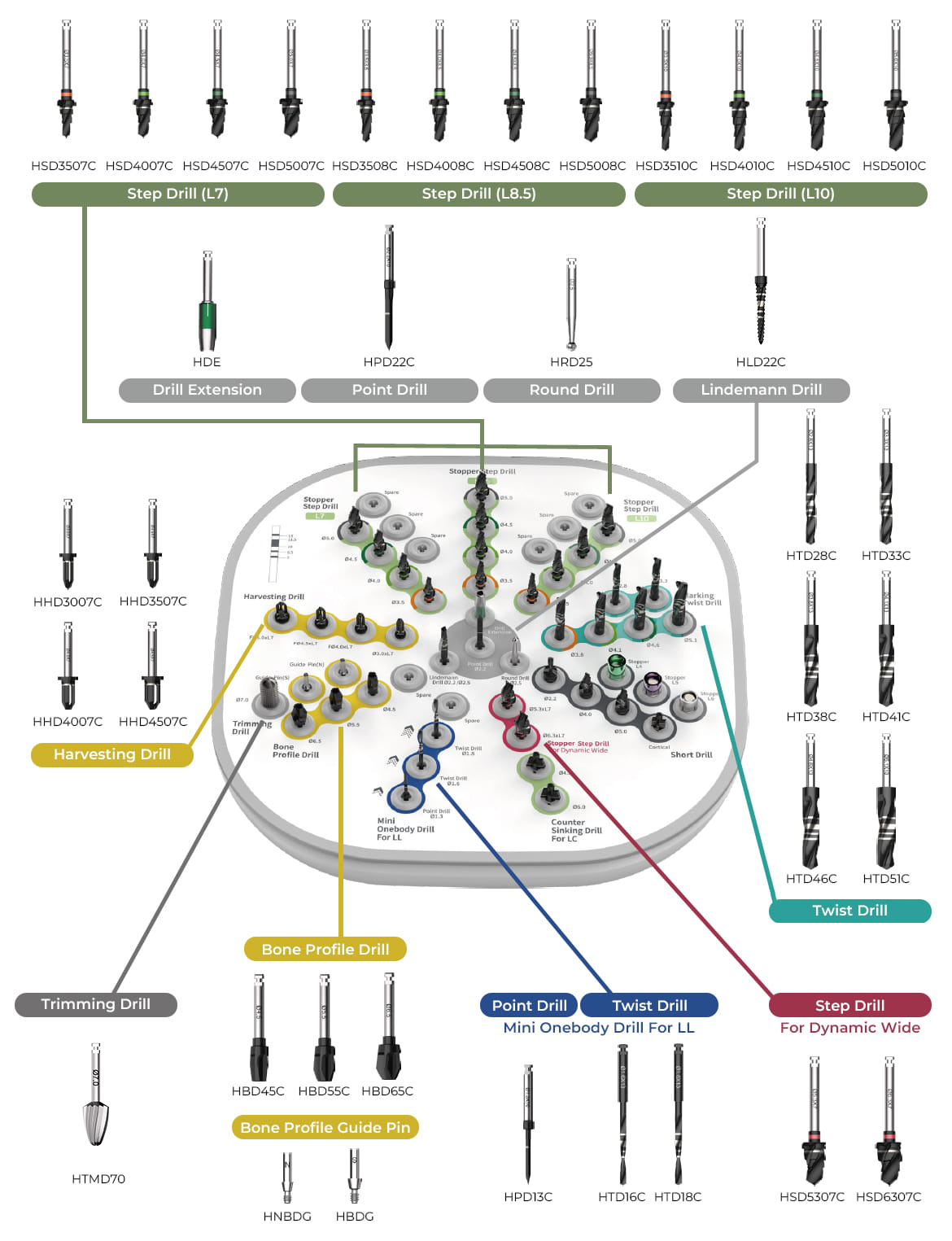

Product Line-up
Click on the image area or the list below.
Step Drill (L7)
L7 size step drill for expanding the initial osteotomy.
- HSD3507C
- HSD4007C
- HSD4507C
- HSD5007C
Step Drill (L8.5)
L8.5 size step drill for securing stable drilling depth.
- HSD3508C
- HSD4008C
- HSD4508C
- HSD5008C
Step Drill (L10)
L10 size step drill supporting the deepest osteotomy formation.
- HSD3510C
- HSD4010C
- HSD4510C
- HSD5010C
Drill Extension
Extends the drill length in hard-to-reach areas of the oral cavity.
- HDE
Point Drill
Marks the exact placement position and forms the initial entry path.
- HPD22C
Round Drill
Used for flattening irregular alveolar bone surfaces or for initial marking.
- HRD25
Lindemann Drill
Useful for modifying the initial placement path or expanding the guide hole.
- HLD22C
Harvesting Drill
Specialized in autogenous bone harvesting, efficiently collecting bone graft materials without bone loss.
- HHD3007C
- HHD3507C
- HHD4007C
- HHD4507C
Twist Drill
Basic form used for initial path formation and guiding the direction of the osteotomy.
- HTD28C
- HTD33C
- HTD38C
- HTD41C
- HTD46C
- HTD51C
Trimming Drill
Dedicated trimming drill for smoothing the irregular surface of the alveolar bone.
- HTMD70
Bone Profile Drill
Effectively removes bone interference around the upper part of the fixture.
- HBD45C
- HBD55C
- HBD65C
Bone Profile Guide Pin
Used with the bone profile drill to secure precise guidance.
- HNBDG
- HBDG
Mini Onebody Drill For LL
Dedicated drill designed for Mini Onebody (LL) placement.
- HPD13C
- HTD16C
- HTD18C
Step Drill (For Dynamic Wide)
Designed exclusively for Dynamic Wide, forming a wide osteotomy.
- HSD5307C
- HSD6307C

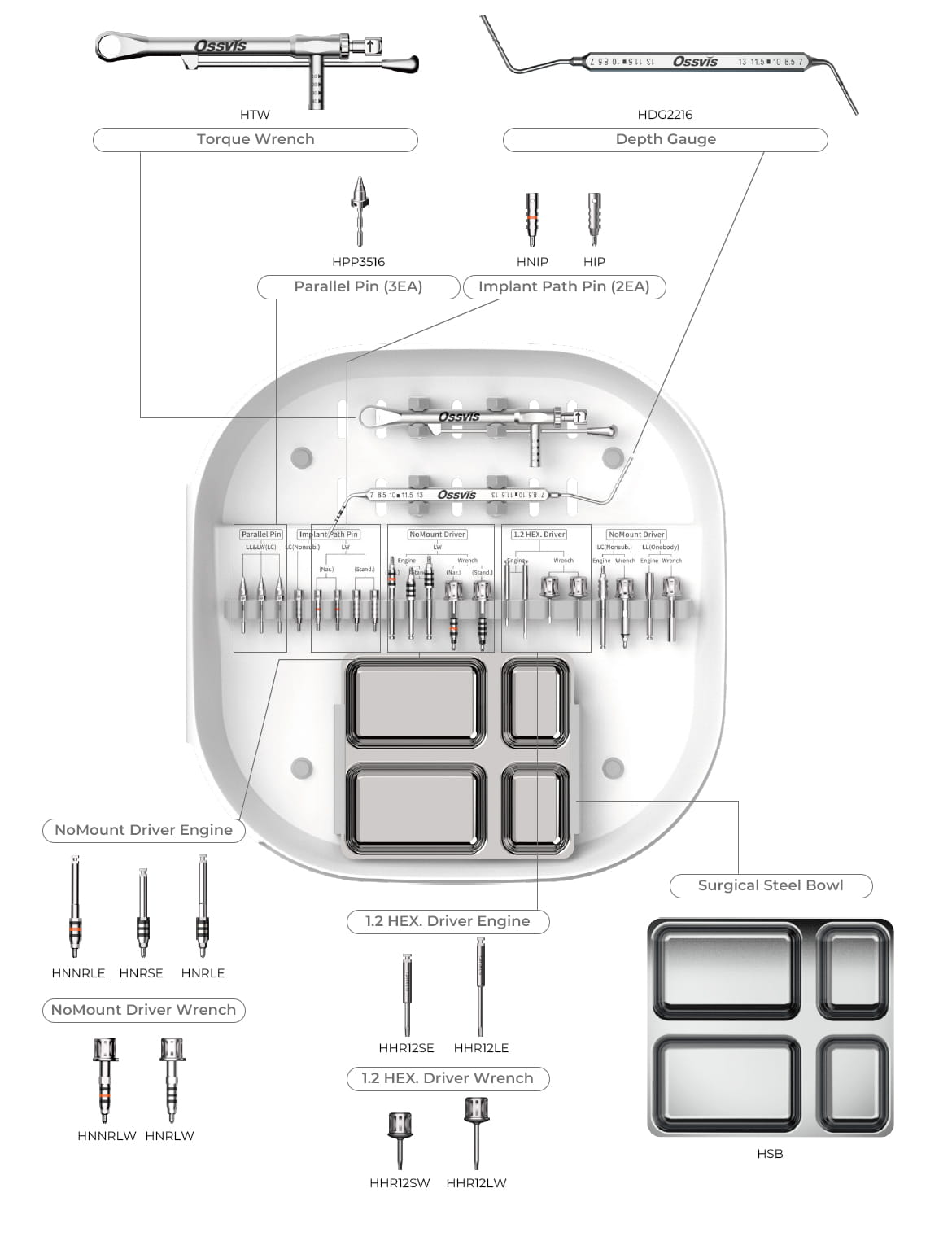

Surgical Master Kit Bottom Cover Tool
Kit Components
Click on the image area or the list below.
Torque Wrench
Used for applying precise torque when placing implants or tightening components.
- HTW
Depth Gauge
Accurately measures the depth of the drilled osteotomy.
- HDG2216
Parallel Pin
Evaluates the path and ensures parallelism of the drilled site.
- HPP3516
Implant Path Pin
Verifies the direction and position of the planned implant path.
- HNIP
- HIP
NoMount Driver Engine
Engine-driven instrument designed for the placement of NoMount fixtures.
- HNNRLE
- HNRSE
- HNRLE
NoMount Driver Wrench
Wrench-driven instrument for manual control during NoMount fixture placement.
- HNNRLW
- HNRLW
1.2 HEX Driver Engine
Engine-compatible hex driver for efficient tightening of abutments.
- HHR12SE
- HHR12LE
1.2 HEX Driver Wrench
Wrench-compatible hex driver for fine manual adjustments and tightening.
- HHR12SW
- HHR12LW
Surgical Steel Bowl
Surgical tray bowl for holding bone graft materials or small components during procedures.
- HSB
