Be Confident at your Brilliant Moment
with Lilivis LW IMPLANT

FEATURE

The best clinical experience with outstanding technology, Lilivis Implant

Lilivis Implant is a dental implant solution developed through
continuous R&D in cooperation with an advisory group
that has extensive clinical experience.

The body design and surface treatment technology that minimize
bone loss and enable strong bone fixation not only induce rapid
osseointegration but also increase healing speed, durability,
and aesthetic outcomes, providing the best treatment
experience for both clinicians and patients.

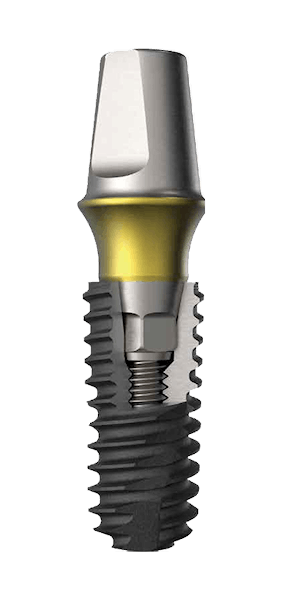

Characteristics

The best clinical experience with outstanding technology

Chamfer Margin

Chamfer-shaped Margin that increases the precision of digital impressions

C-Cuff Design

Enhanced 'Biologic width' effect by specialized 'C-Cuff design

Platform Switching

Prevention of soft tissue atrophy and minimization of alveolar bone resorption

S.L.A Surface

Induction of rapid osseointegration by strengthening hydrophilicity

Internal Connection

Elimination of micro gap with self-precision CNC processing technology, Realization of Morse Taper 11°, and application of 2.5 Hex to enhance screw fastening stability

Tapered Body

Reduce placement resistance and improve initial fixation

Cutting Edge

Increase procedure comfort by improved self-tapping function.

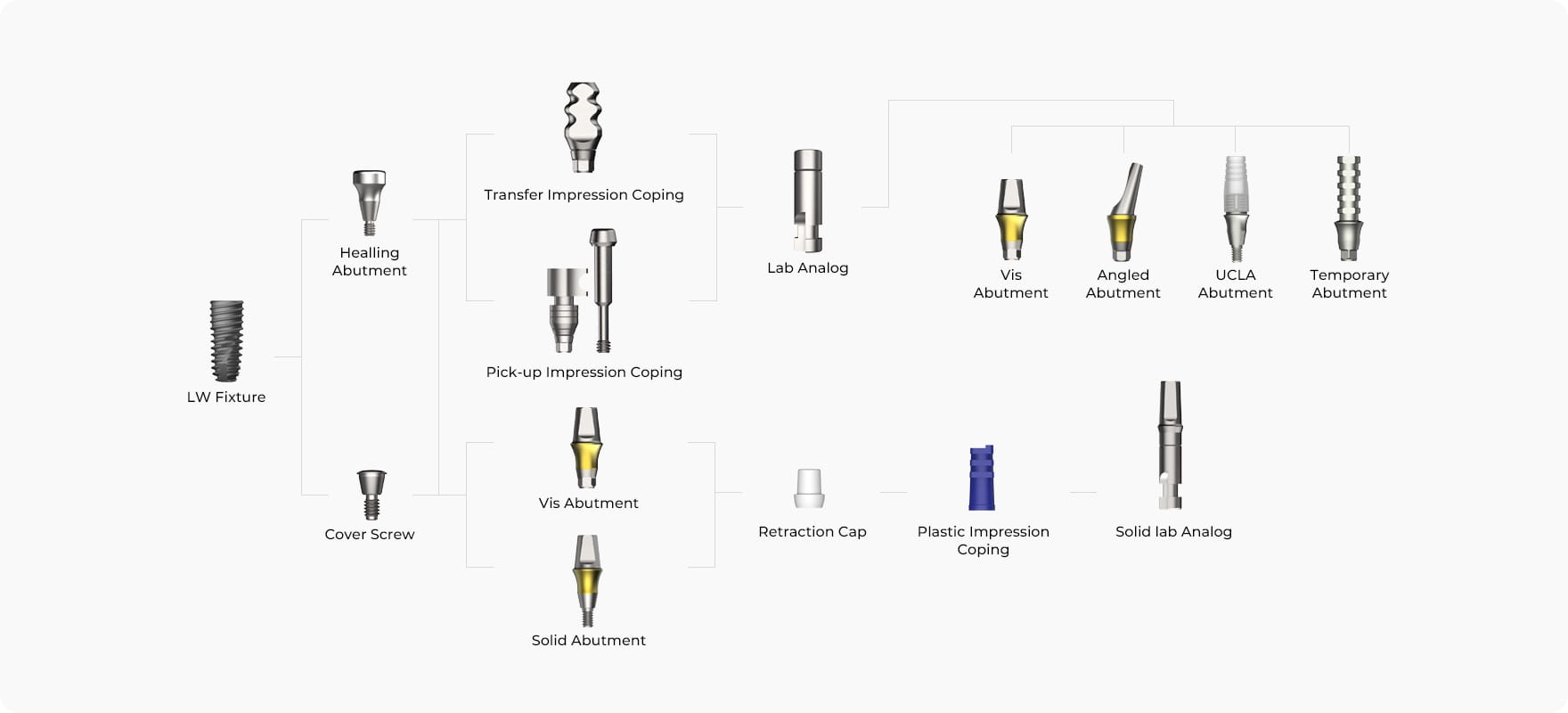

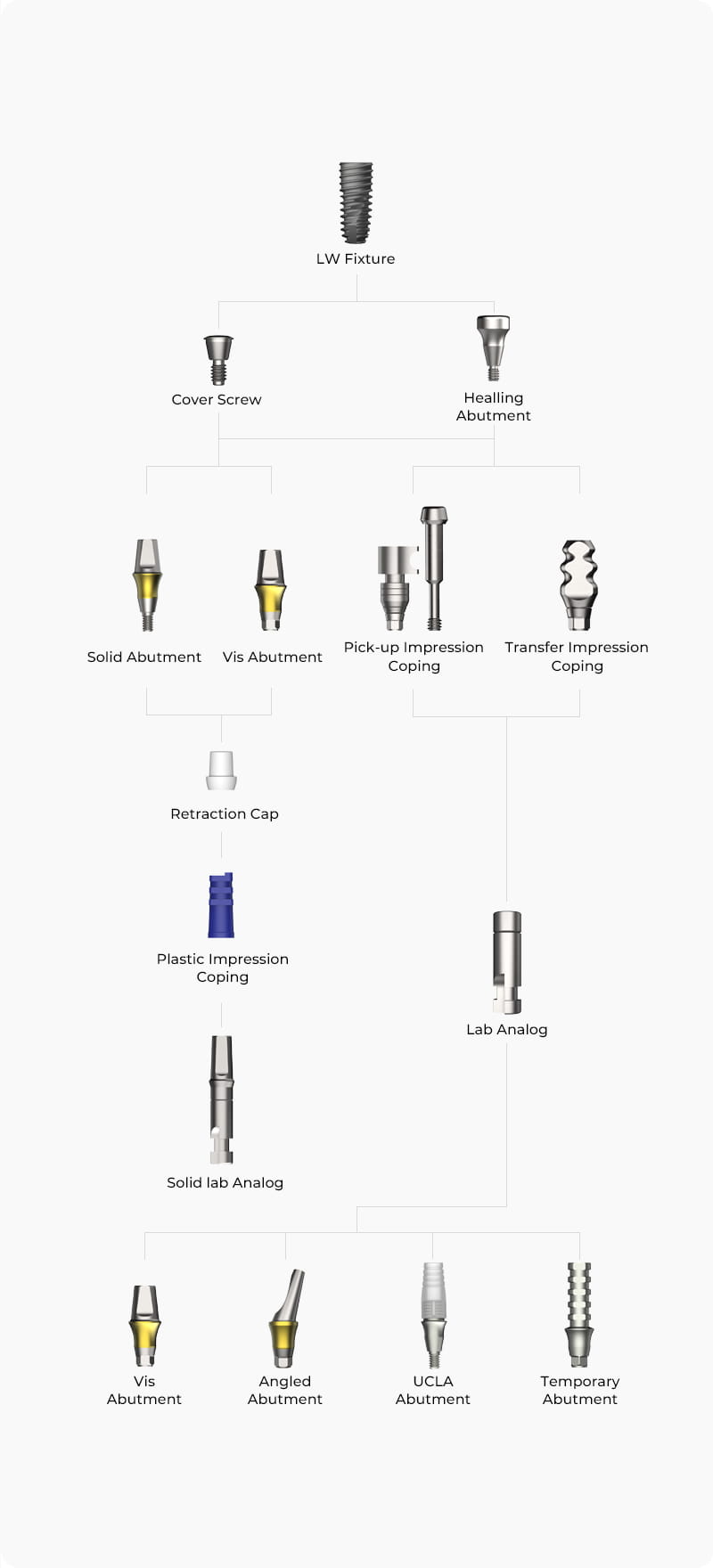

Prosthetic Flow Diagram

Line-Up

- LW Fixture
+ LW Abutment

**STANDARD** Ø4.0~Ø4.5
Ø4.0	Image
Length(mm)	7.0mm	8.5mm	10mm	11.5mm
Code No.	LWSF4007S	LWSF4008S	LWSF4010S	LWSF4011S
Ø4.5	Image
Length(mm)	7.0mm	8.5mm	10mm	11.5mm
Code No.	LWSF4507S	LWSF4508S	LWSF4510S	LWSF4511S

**WIDE** Ø5.0~Ø5.5
Ø5.0	Image
Length(mm)	7.0mm	8.5mm	10mm	11.5mm
Code No.	LWSF5007S	LWSF5008S	LWSF5010S	LWSF5011S
Ø5.5	Image
Length(mm)	7.0mm	8.5mm	10mm
Code No.	LWSF5507S	LWSF5508S	LWSF5510S

**DYNAMIC WIDE** Ø6.0~Ø8.0
Ø6.0	Image
Length(mm)	7.0mm	8.5mm	10mm
Code No.	LWSF6007S	LWSF6008S	LWSF6010S
Ø7.0	Image
Length(mm)	7.0mm	8.5mm	10mm
Code No.	LWSF7007S	LWSF7008S	LWSF70s10S

**COVER SCREW** Ø3.5s
Features	Image	Height(mm)	Code No.
Using it during the osseointegration period when Two stage Surgery Compatible with 1.2 HEX. Driver Wrench Recommended torque : 5 to 10 Ncm		0.4mm	LWCS3504

**Healing Abutment**
Ø4.0	Image
Height(mm)	3.0	4.0	5.0	6.0	7.0	8.0	9.0
Code No.	LWHA403F	LWHA404F	LWHA405F	LWHA406F	LWHA407F	LWHA408F	LWHA409F

Ø4.5	Image
Height(mm)	3.0	4.0	5.0	6.0	7.0	8.0	9.0
Code No.	LWHA453F	LWHA454F	LWHA455F	LWHA456F	LWHA457F	LWHA458F	LWHA459F

Ø5.0	Image
Height(mm)	3.0	4.0	5.0	6.0	7.0	8.0	9.0
Code No.	LWHA503F	LWHA504F	LWHA505F	LWHA506F	LWHA507F	LWHA508F	LWHA509F

Ø6.0	Image
Height(mm)	3.0	4.0	5.0	6.0	7.0	8.0	9.0
Code No.	LWHA603F	LWHA604F	LWHA605F	LWHA606F	LWHA607F	LWHA608F	LWHA609F

Ø7.0	Image
Height(mm)	3.0	4.0	5.0	6.0	7.0	8.0	9.0
Code No.	LWHA703F	LWHA704F	LWHA705F	LWHA706F	LWHA707F	LWHA708F	LWHA709F

**Solid Abutment** Packing : Abutment + Retraction Cap
Ø4.0
Cuff(mm)	1.0	2.0	3.0	4.0	5.0
Height (mm)	4.0	LWSA4014FPCRS	LWSA4024FPCRS	LWSA4034FPCRS	LWSA4044FPCRS	LWSA4054FPCRS
5.5	LWSA4015FPCRS	LWSA4025FPCRS	LWSA4035FPCRS	LWSA4045FPCRS	LWSA4055FPCRS
7.0	LWSA4017FPCRS	LWSA4027FPCRS	LWSA4037FPCRS	LWSA4047FPCRS	LWSA4057FPCRS

Ø4.5
Cuff(mm)	1.0	2.0	3.0	4.0	5.0
Height (mm)	4.0	LWSA4514FPCRS	LWSA4524FPCRS	LWSA4534FPCRS	LWSA4544FPCRS	LWSA4554FPCRS
5.5	LWSA4515FPCRS	LWSA4525FPCRS	LWSA4535FPCRS	LWSA4545FPCRS	LWSA4555FPCRS
7.0	LWSA4517FPCRS	LWSA4527FPCRS	LWSA4537FPCRS	LWSA4547FPCRS	LWSA4557FPCRS

Ø5.0
Cuff(mm)	1.0	2.0	3.0	4.0	5.0
Height (mm)	4.0	LWSA5014FPCRS	LWSA5024FPCRS	LWSA5034FPCRS	LWSA5044FPCRS	LWSA5054FPCRS
5.5	LWSA5015FPCRS	LWSA5025FPCRS	LWSA5035FPCRS	LWSA5045FPCRS	LWSA5055FPCRS
7.0	LWSA5017FPCRS	LWSA5027FPCRS	LWSA5037FPCRS	LWSA5047FPCRS	LWSA5s057FPCRS


Ø6.0
Cuff(mm)	1.0	2.0	3.0	4.0	5.0
Height (mm)	4.0	LWSA6014FPCRS	LWSA6024FPCRS	LWSA6034FPCRS	LWSA6044FPCRS	LWSA6054FPCRS
5.5	LWSA6015FPCRS	LWSA6025FPCRS	LWSA6035FPCRS	LWSA6045FPCRS	LWSA6055FPCRS
7.0	LWSA6017FPCRS	LWSA6027FPCRS	LWSA6037FPCRS	LWSA6047FPCRS	LWSA6s057FPCRS

Ø7.0
Cuff(mm)	1.0	2.0	3.0	4.0	5.0
Height (mm)	4.0	LWSA7014FPCRS	LWSA7024FPCRS	LWSA7034FPCRS	LWSA7044FPCRS	LWSA7054FPCRS
5.5	LWSA7015FPCRS	LWSA7025FPCRS	LWSA7035FPCRS	LWSA7045FPCRS	LWSA7055FPCRS
7.0	LWSA7017FPCRS	LWSA7027FPCRS	LWSA7037FPCRS	LWSA7047FPCRS	LWSA7s057FPCRS

**Retraction Caps**
Height(mm)	4.0	5.5	7.0
Diameter(ø)	Ø4.0	LWRC404	LWRC405	LWRC407
ø4.5	LWRC454	LWRC455	LWRC457
ø5.0	LWRC504	LWRC505	LWRC507
ø6.0	LWRC604	LWRC605	LWRC607
ø7.0	LWRC704	LWRC705	LWRC707

**Plastic Impression Copings**
Height(mm)	7.0
Diameter(ø)	ø4.0	LWPC407
ø4.5	LWPC457
ø5.0	LWPC507
ø6.0	LWPC607
ø7.0	LWPC707

**Solid Lab Analog**
Height(mm)	4.0	5.5	7.0
Diameter(ø)	ø4.0	LWSLA404	LWSLA405	LWSLA407
ø4.5	LWSLA454	LWSLA455	LWSLA457
ø5.0	LWSLA504	LWSLA505	LWSLA507
ø6.0	LWSLA604	LWSLA605	LWSLA607
ø7.0	LWSLA704	LWSLA705	LWSLA707

**Vis Abutment** Packing : Abutment + Screw
Ø4.5
Cuff(mm)	1.0	2.0	3.0	4.0	5.0	6.0	7.0
Height (mm)	Hex	4.0
5.5	LWCA4515FHPCRS	LWCA4525FHPCRS	LWCA4535FHPCRS	LWCA4545FHPCRS	LWCA4555FHPCRS	LWCA4565FHPCRS	LWCA4575FHPCRS
7.0	LWCA4517FHPCRS	LWCA4527FHPCRS	LWCA4537FHPCRS	LWCA4547FHPCRS	LWCA4557FHPCRS	LWCA4567FHPCRS	LWCA4577FHPCRS
Non-Hax	4.0
5.5	LWCA4515FNPCRS	LWCA4525FNPCRS	LWCA4535FNPCRS	LWCA4545FNPCRS	LWCA4555FNPCRS	LWCA4565FNPCRS	LWCA4575FNPCRS
7.0	LWCA4517FNPCRS	LWCA4527FNPCRS	LWCA4537FNPCRS	LWCA4547FNPCRS	LWCA4557FNPCRS	LWCA4567FNPCRS	LWCA4577FNPCRS

Ø5.0
Cuff(mm)	1.0	2.0	3.0	4.0	5.0	6.0	7.0
Height (mm)	Hex	4.0	LWCA5014FHPCRS	LWCA5024FHPCRS	LWCA5034FHPCRS	LWCA5044FHPCRS	LWCA5054FHPCRS	LWCA5064FHPCRS	LWCA5074FHPCRS
5.5	LWCA5015FHPCRS	LWCA5025FHPCRS	LWCA5035FHPCRS	LWCA5045FHPCRS	LWCA5055FHPCRS	LWCA5065FHPCRS	LWCA5075FHPCRS
7.0	LWCA5017FHPCRS	LWCA5027FHPCRS	LWCA5037FHPCRS	LWCA5047FHPCRS	LWCA5057FHPCRS	LWCA5067FHPCRS	LWCA5077FHPCRS
Non-Hax	4.0	LWCA5014FNPCRS	LWCA5024FNPCRS	LWCA5034FNPCRS	LWCA5044FNPCRS	LWCA5054FNPCRS	LWCA5064FNPCRS	LWCA5074FNPCRS
5.5	LWCA5015FNPCRS	LWCA5025FNPCRS	LWCA5035FNPCRS	LWCA5045FNPCRS	LWCA5055FNPCRS	LWCA5065FNPCRS	LWCA5075FNPCRS
7.0	LWCA5017FNPCRS	LWCA5027FNPCRS	LWCA5037FNPCRS	LWCA5047FNPCRS	LWCA5057FNPCRS	LWCA5067FNPCRS	LWCA5077FNPCRS

Ø6.0
Cuff(mm)	1.0	2.0	3.0	4.0	5.0	6.0	7.0
Height (mm)	Hex	4.0	LWCA6014FHPCRS	LWCA6024FHPCRS	LWCA6034FHPCRS	LWCA6044FHPCRS	LWCA6054FHPCRS	LWCA6064FHPCRS	LWCA6074FHPCRS
5.5	LWCA6015FHPCRS	LWCA6025FHPCRS	LWCA6035FHPCRS	LWCA6045FHPCRS	LWCA6055FHPCRS	LWCA6065FHPCRS	LWCA6075FHPCRS
7.0	LWCA6017FHPCRS	LWCA6027FHPCRS	LWCA6037FHPCRS	LWCA6047FHPCRS	LWCA6057FHPCRS	LWCA6067FHPCRS	LWCA6077FHPCRS
Non-Hax	4.0	LWCA6014FNPCRS	LWCA6024FNPCRS	LWCA6034FNPCRS	LWCA6044FNPCRS	LWCA6054FNPCRS	LWCA6064FNPCRS	LWCA6074FNPCRS
5.5	LWCA6015FNPCRS	LWCA6025FNPCRS	LWCA6035FNPCRS	LWCA6045FNPCRS	LWCA6055FNPCRS	LWCA6065FNPCRS	LWCA6075FNPCRS
7.0	LWCA6017FNPCRS	LWCA6027FNPCRS	LWCA6037FNPCRS	LWCA6047FNPCRS	LWCA6057FNPCRS	LWCA6067FNPCRS	LWCA6077FNPCRS

Ø7.0
Cuff(mm)	1.0	2.0	3.0	4.0	5.0	6.0	7.0
Height (mm)	Hex	4.0	LWCA7014FHPCRS	LWCA7024FHPCRS	LWCA7034FHPCRS	LWCA7044FHPCRS	LWCA7054FHPCRS	LWCA7064FHPCRS	LWCA7074FHPCRS
5.5	LWCA7015FHPCRS	LWCA7025FHPCRS	LWCA7035FHPCRS	LWCA7045FHPCRS	LWCA7055FHPCRS	LWCA7065FHPCRS	LWCA7075FHPCRS
7.0
Non-Hax	4.0	LWCA7014FNPCRS	LWCA7024FNPCRS	LWCA7034FNPCRS	LWCA7044FNPCRS	LWCA7054FNPCRS	LWCA7064FNPCRS	LWCA7074FNPCRS
5.5	LWCA7015FNPCRS	LWCA7025FNPCRS	LWCA7035FNPCRS	LWCA7045FNPCRS	LWCA7055FNPCRS	LWCA7065FNPCRS	LWCA7075FNPCRS
7.0

**Angled Abutment** Packing : Abutment + Screw
Ø4.5
Cuff(mm)	2.0	4.0
Type	A-Type	LWAA45217FHAPCS	LWAA45417FHAPCS
B-Type	LWAA45217FHBPCS	LWAA45417FHBPCS
Non-Type	LWAA45217FNPCS	LWAA45417FNPCS

Ø5.0
Cuff(mm)	2.0	4.0
Type	A-Type	LWAA50217FHAPCS	LWAA50417FHAPCS
B-Type	LWAA50217FHBPCS	LWAA50417FHBPCS
Non-Type	LWAA50217FNPCS	LWAA50417FNPCS

Ø6.0
Cuff(mm)	2.0	4.0
Type	A-Type	LWAA60217FHAPCS	LWAA60417FHAPCS
B-Type	LWAA60217FHBPCS	LWAA60417FHBPCS
Non-Type	LWAA60217FNPCS	LWAA60417FNPCS
