FEATURE
Digital Dentistry Begins, Lilivis
Lilivis perfects its ecosystem by integrating in-house-developed
cutting-edge products and software into a comprehensive workflow.
Lilivis PRINT provides the best quality through providing reliable
results in any situation.
Building trust with the LSA System, Lilivis PRINT
Improved printing precision by automatically measuring and correcting
the amount of light to maintain the same amount of light (95% overall light uniformity) and light uniformity.
By counting the LED usage time and automatically selecting and using only the
LEDs needed for output, it reduces repetitive fatigue and prevents LCD panel
damage and enhances equipment durability.
Through the LSA-Model Repositioning System, the optimal output position
is automatically searched for and then printed to reduce the fatigue
accumulation of LED, Film and LCD panels and maintain the best quality.
Printing satisfaction with patented lens, Lilivis PRINT

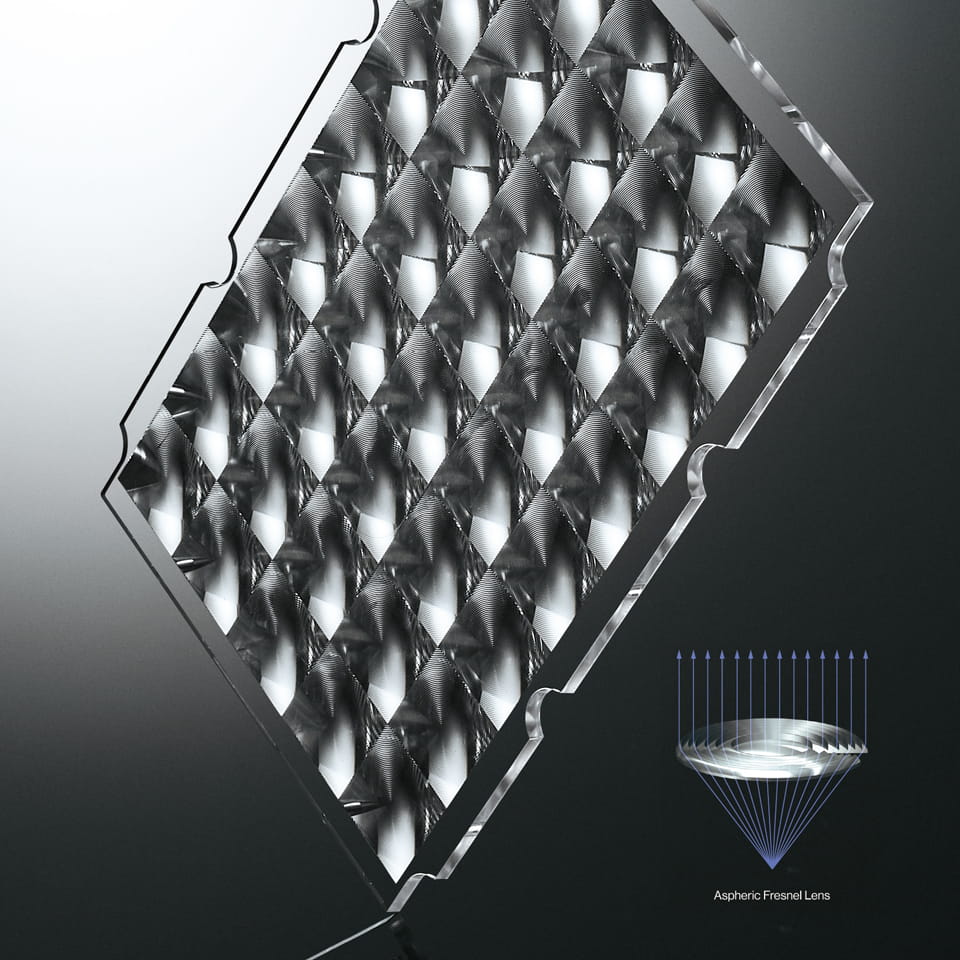

Patented aspherical Fresnel Lens and Array design minimizes light overlapping
and distortion, maintaining uniform light quantity and excellent light straightness.
Improved working speed (average 15 to 30 minutes) by ultra-fast output for
up to 10 minutes (based on single crown)
With the Pre-Heating function, when the temperature falls below a certain
temperature, the temperature of the material and equipment in the VAT rises to
ensure the success rate of the initial output automatically.

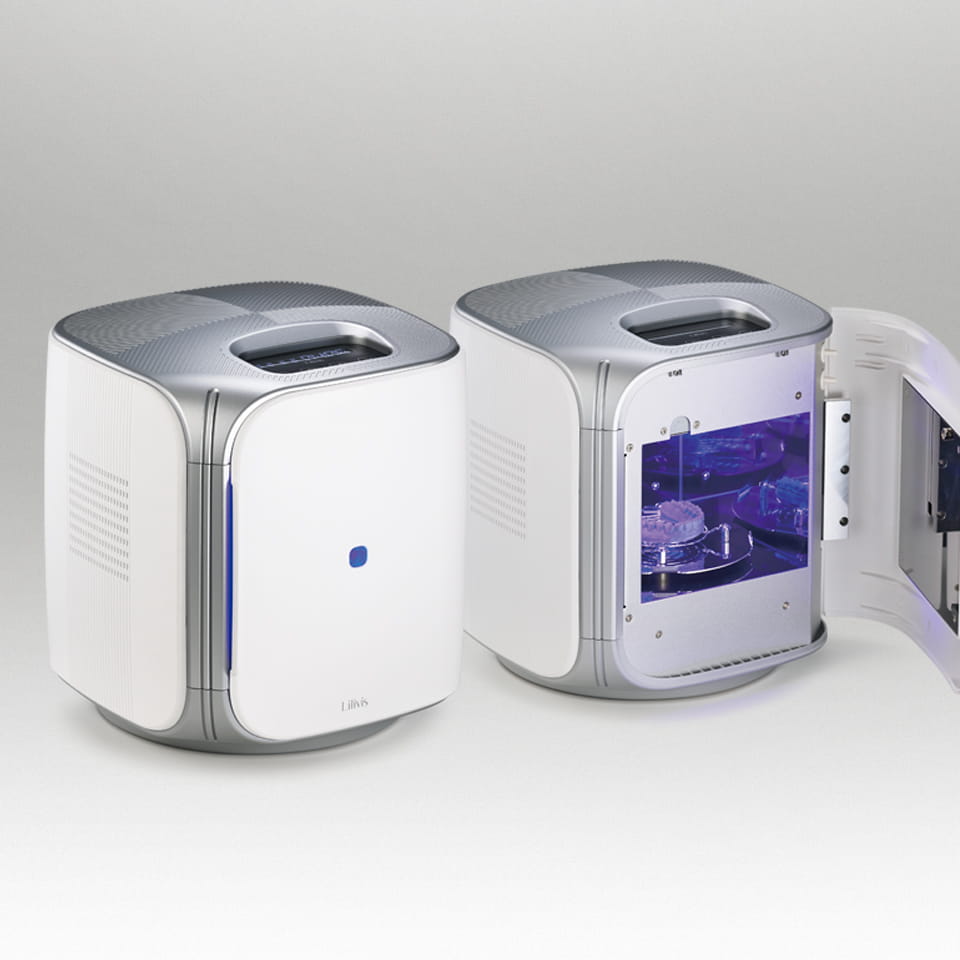

Exposure light power in uniform with 30 High-power LEDs, Lilivis CURE
Unlike the centralized type with LED placement optimization technology,
uniform light is irradiated to the entire interior surface to prevent
over-curing and non-curing to improve product quality.
Ultra UV Power exposed from 20 top/10 side high-power LEDs for fast heat curing and maximization of resin properties.
* Inlay case / Curing Time: 1 Min (Normally 1~7 Minutes)
TECHNICAL DATA
Lilivis PRINT
Printing Type
Adaptive MSLA
Build Size
Size : 120 x 75 x 120 mm
Pixel Size(X/Y)
50 um
Light Source
405 um
Z Resolution
10 um ~ 200 um
Material System
Open Material
Build Plate Type
Leveling Free
Input Power
100-120 Vac / 220-240 Vac
Machine Size
300 x 300 x 380 mm
Weight(Net)
16 Kg
* Specifications and designs are subject to change without notice.
Lilivis PRINT
Chamber Size
Ø150 x 100 mm
LED Position
Top 20 ea, Side 10 ea
Light Source
395 nm UV LED
Input Power
100-120 Vac / 220-240 Vac
LED Output Power
280W
Machine Size
280 x 280 x 300 mm
Weight(Net)
8.5 Kg
* Specifications and designs are subject to change without notice.
